Heavy Duty
Manhole Covers & Grates
Ductile iron covers EN124 certified. Load classes A15 to F900. Round and square options, clear opening 600mm.
Home / Products
The range
Four product families and the full item list under each one, warehoused in Amman and supplied to international load and material standards.
Access
Manhole covers & grates
Cast iron and ductile iron access covers and gratings, supplied round, square, rectangular and recessed. Each is rated for the traffic that will pass over it, from landscaped decks through to aircraft pavements.
- Cast iron and ductile iron bodies
- Round, square, rectangular & recessed
- Lockable and hinged options
- Frames, seals and lifting keys
Available load classes: A 15, B 125, C 250, D 400, E 600, F 900
Manhole Covers & Catch Basins
Utility Access

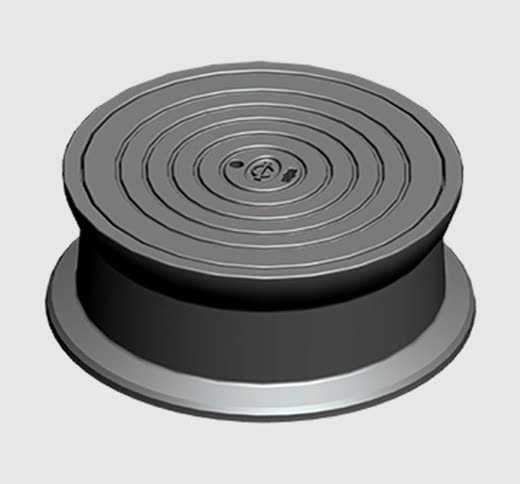

Surface Box
Water meter and valve boxes. Available in various sizes with locking options. Load rating B125 to D400.
Drainage

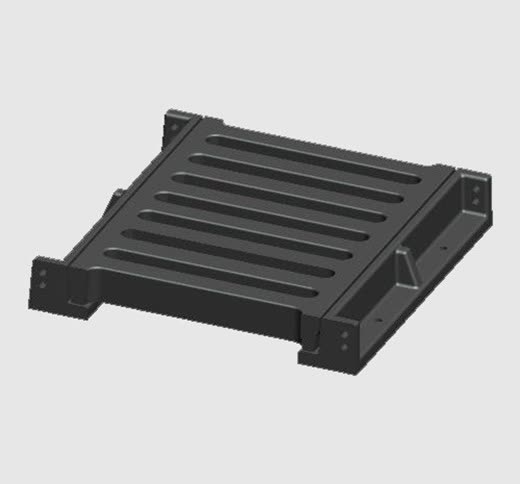

Channel Gratings
Ductile iron channel gratings for trench drain systems. Anti-slip surface, various widths from 100mm to 300mm.
Stormwater

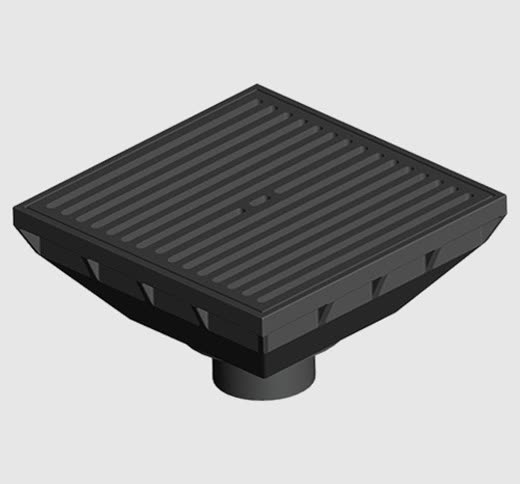

Catch Basins
Stormwater catch basins with curb or grate inlets. Standard depths 600mm to 1200mm. Multiple outlet configurations.
Road Drainage

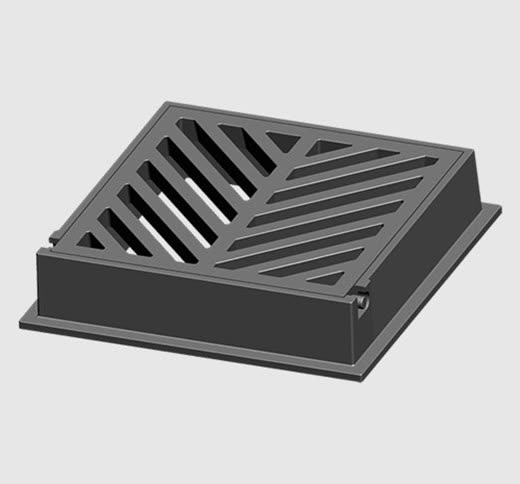

Gully Gratings
Road gully gratings with hinged options. C250 and D400 load classes. Standard sizes 300x300mm to 500x500mm.
Tree Grates & Guards
Urban Landscaping

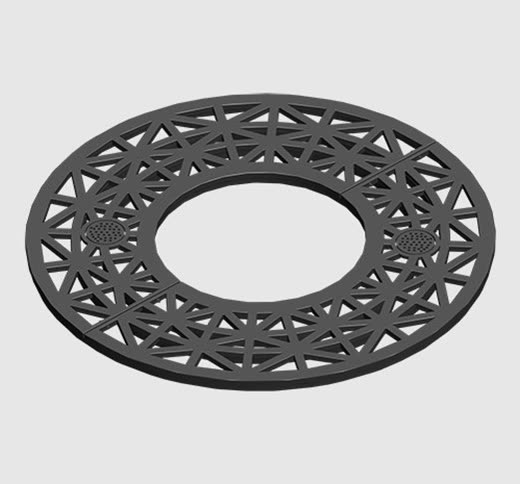

Tree Grates
Decorative cast iron tree grates for urban landscaping. Various patterns available. Standard sizes 1200x1200mm and 1500x1500mm.
Tree Protection

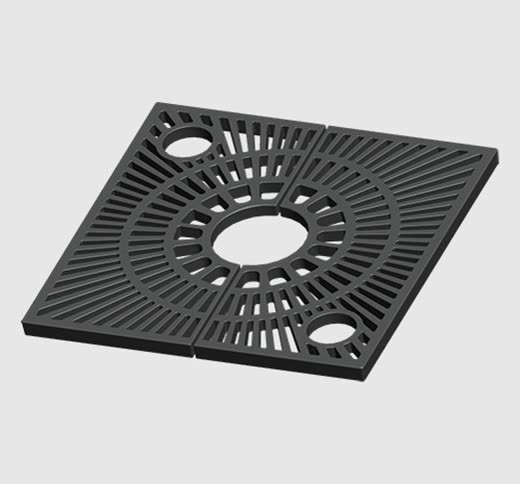

Tree Guards
Protective tree guards to complement tree grates. Powder-coated finish in various colors. Heights from 600mm to 1800mm.
Cover Accessories
Sealing
Gaskets & Seals
EPDM and neoprene gaskets for watertight installations. Custom sizes available for special applications.
Adjustments

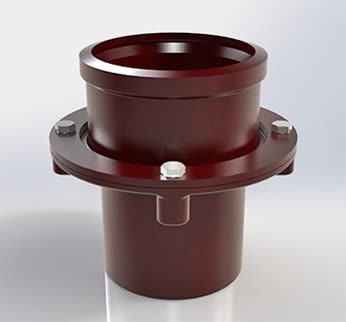

Extension Rings
Adjustment rings for proper drain elevation. Available in various heights from 25mm to 200mm.
Drainage
Drainage systems
Roof drains, floor drains, area drains and channel systems, specified from the outlet back to the slab so the whole run works together rather than as loose parts.
- Roof drains and rainwater outlets
- Floor and area drains for wet zones
- Linear channels and gratings
- Traps, grates and accessories in stock
Available load classes: A 15, B 125, C 250, D 400
Cast Iron Drains
Roofing

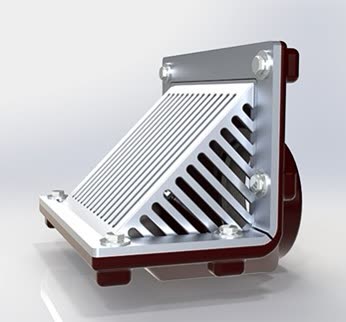

Roof Drains
Heavy-duty cast iron roof drains with dome strainers. Available in 3", 4", 6", and 8" outlet sizes. Optional overflow provisions.
Industrial

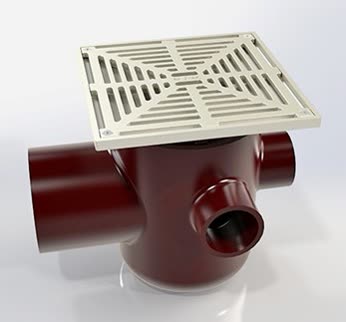

Floor Drains
Cast iron floor drains with adjustable tops. Heavy-duty grates for industrial loads. Sizes from 2" to 6" outlets.
Parking Areas

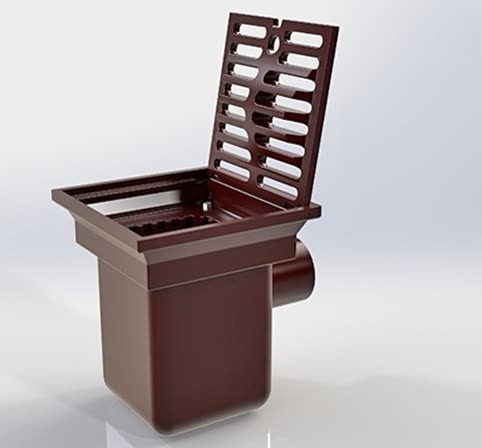

Area / Parking Drains
Large capacity drains for parking decks and loading areas. Heel-proof grates available. Load rating H20-25 tons.
Maintenance

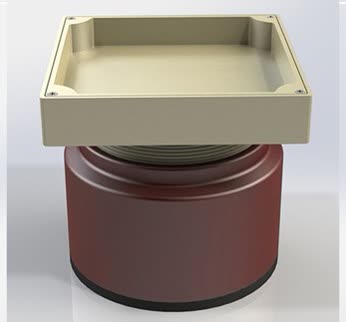

Cleanouts
Cast iron cleanout assemblies with secured covers. Available in 4", 6", and 8" sizes with adjustable tops.
Sustainable

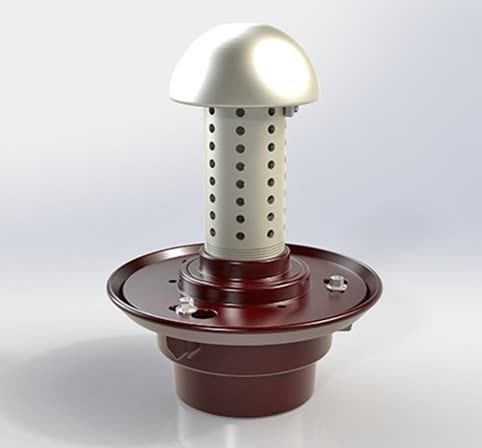

Green Roof Drains
Specialized drainage for green roof systems. Includes gravel stops and vegetation barriers. Flow control options available.
Trench Drains & Gratings
Light Duty
Stainless Steel - Light Duty
Light duty trench drains for pedestrian areas. Slot width 10-20mm, load class A15 (1.5 tons).
Heavy Duty

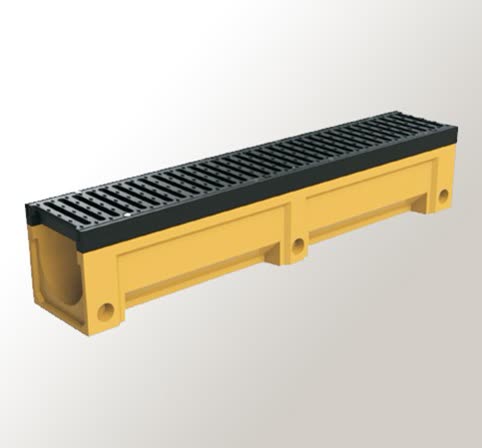

Polymer Concrete Channels
Chemical-resistant polymer concrete channels. Suitable for industrial areas with high chemical exposure. Load class up to D400.
Heavy Duty

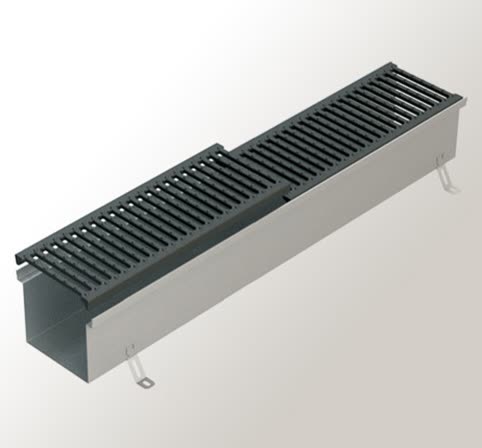

GS/SS Channel with DI Gratings
Galvanized or stainless steel channels with ductile iron gratings. For heavy traffic areas, load class C250 to E600.
Interceptors
Kitchen / Restaurant
Grease Interceptor
PDI certified grease interceptors for commercial kitchens. Capacities from 4 GPM to 100 GPM. Meets local code requirements.
Industrial

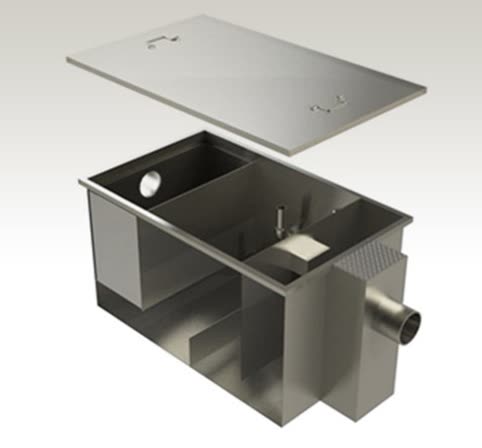

Oil Interceptor
Oil/water separators for parking garages and service stations. Coalescing media for enhanced separation efficiency.
Laundry

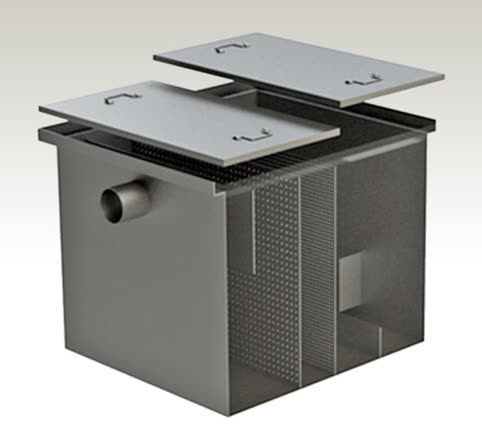

Lint Interceptor
Lint traps for commercial laundries. Removable lint basket for easy cleaning. Stainless steel construction.
Industrial

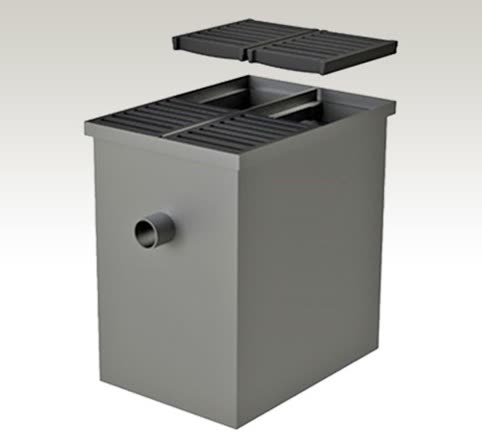

Sand Interceptor
Sand and sediment traps for car washes and industrial facilities. Deep sump design for maximum capacity.
Drainage Accessories
Drain Accessories

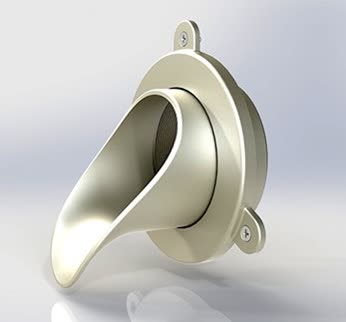

Strainers & Baskets
Replacement strainers and sediment baskets for various drain types. Stainless steel and plastic options available.
Stainless
Stainless steel products
Shower, kitchen and linear drains plus sanitary ware in stainless grades built for wet, hygienic and high-traffic environments, hotels, hospitals and commercial kitchens.
- Shower and wet-room drains
- Kitchen and commercial floor drains
- Linear and slot drainage
- Sanitary ware and fittings
Stainless Steel Drains
Bathroom Drainage

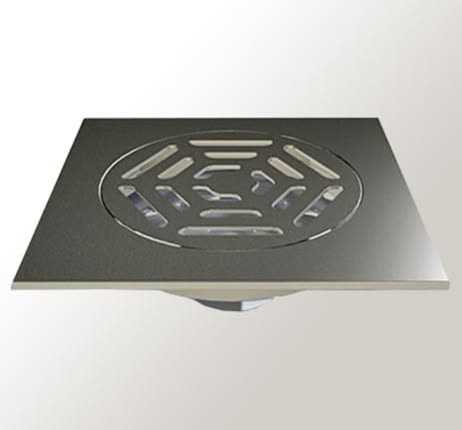

Linear Shower Drains
Premium linear drainage systems for modern barrier-free bathrooms. Available in various lengths from 600mm to 1200mm with high flow rates.
Bathroom Drainage

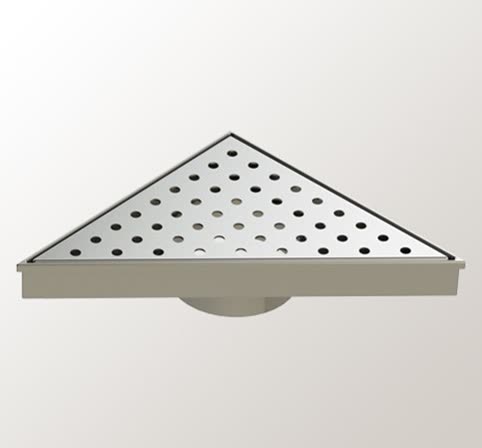

Shower Drains
Square and round shower drains with removable grates. Anti-odor trap and hair catcher included. Sizes: 100x100mm, 150x150mm.
Floor Drainage

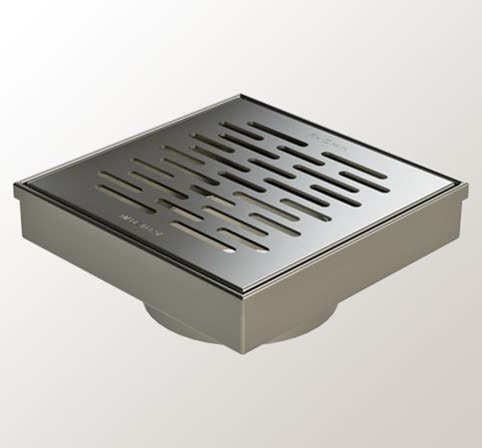

General Purpose Floor Drains
Heavy-duty stainless steel floor drains for industrial and commercial applications. Load capacity up to 1.5 tons.
Maintenance Access

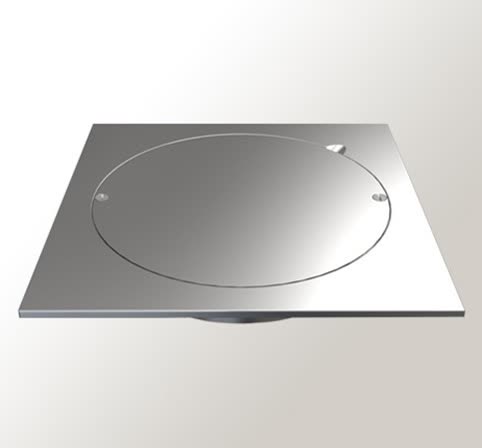

Cleanouts
Stainless steel cleanout covers for easy maintenance access. Available with square or round covers, sealed or ventilated options.
Commercial Kitchen

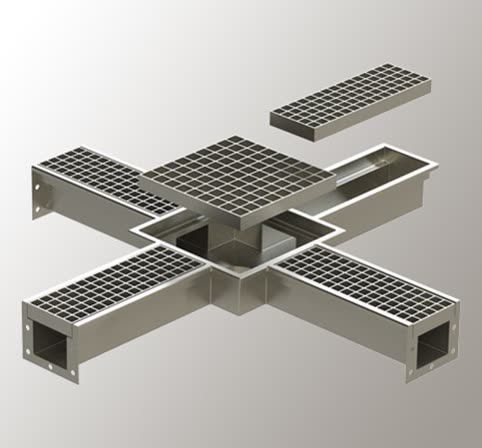

Kitchen Drains
Hygienic kitchen floor drains with removable baskets. Designed for commercial kitchens with grease trap compatibility.
Castings
Mechanical castings
Crusher parts, sanitary supplies and made-to-order castings, imported alongside the stocked range and scheduled against your programme.
- Crusher and plant wear parts
- Sanitary and utility supplies
- Made-to-order casting imports
- Sourcing, clearance and delivery handled
Mechanical Castings
Made to order
Mechanical Castings
Made-to-order mechanical castings and wear parts, produced to drawing and imported alongside the stocked range.
Quarries & Plant
Crusher Supplies
Crusher and plant wear parts - jaws, liners and mantles - sourced for quarries and batching plants.
Load classes
Specify by the weight
that will cross it
Covers and gratings are supplied to the EN 124 class matching the application. If you are unsure which applies, send the location and we will advise.
| Class | Test load | Where it belongs |
|---|---|---|
| A 15 | 1.5 t | Footpaths, plazas and landscaped decks, pedestrians and cyclists only |
| B 125 | 12.5 t | Pavements, driveways and car parks for cars and light commercial vehicles |
| C 250 | 25 t | Gully gratings in the kerb line, verges and carriageway shoulders |
| D 400 | 40 t | Carriageways, hard shoulders and areas open to all road vehicles |
| E 600 | 60 t | Loading bays, docks, industrial floors and forklift traffic |
| F 900 | 90 t | Aircraft pavements, aprons and taxiway areas |
Next step
WhatsApp the drawings.
We'll tell you what's
in stock today
Send them by WhatsApp or email. Quotations come back with availability, load class and lead time, so you know what ships this week and what needs ordering.
Request a quotation
